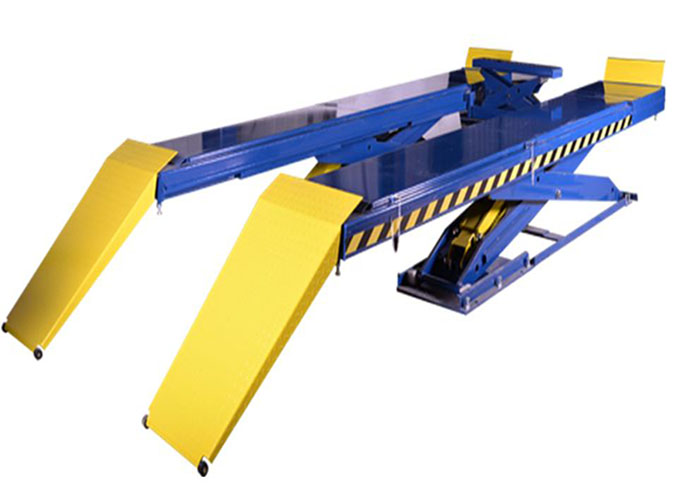

UB-SA4.0CT  4.0ton Supper thin Alignment Scissor lift

Ultra-thin thickness at the end of the body structure, which can be installed directly on the ground for low vehicle chassis. Platforms, including side board , front size adjustable groove, applied to four-wheel (including new 3 d technology locator). Thickening of high strength flat steel bracket (16mmQ345 manganese steel)giving the body full load scissors work arbitrary Angle stability. Platform internal welding reinforced steel plate(attached to the support plate on both sides, for long body vehicles), high strength /resistance to deformation. Both sides, for long body vehicles), high strength /resistance to deformation. Built-in lubricating nylon pulley. The shear type bracket near the bottom part and fixed welding thick plate. At the same time as oil cylinder fixed base. A stable support arm structure, and optimize the oil cylinder work efficiency , eliminate load/load caused by partial center backplane.
